MobilePay
This page outlines the basics of using MobilePay via Netaxept and gives you instructions needed for a successful implementation.
Before you start
Before you start accepting wallet payments, you need to sign an acquiring agreement with the relevant provider and activate that payment option in your Netaxept Admin Account.
Overview
MobilePay is a Wallet payment method, enabling users to authenticate and approve payments via their MobilePay payment app.
Before your customers can use MobilePay, they must have installed the correct payment app on their mobile device with one or more payment card(s) added to their MobilePay account. The customer’s account information is connected to their phone number.
When the customer has chosen MobilePay from payment method options on a desktop, they are first directed to MobilePay-hosted page to enter their phone number as registered in the app. After this, a push message will be sent to the customer’s mobile device to open the MobilePay app to complete the payment. When paying with mobile device or in-app, the customer is switched directly to the MobilePay app to approve the payment.
During the approval process, Netaxept authorizes the payment automatically. If the authorization is accepted by the card issuer, the customer receives a receipt in the app showing the approval of the payment.
Please note that this is not an official receipt. The consumer should receive the official receipt from your webshop as they normally do.
The payment is now authorized and shown as authorized also in Netaxept. When the order has been delivered to the customer or there is certainty regarding its delivery, you can capture the payment. After the capture is done, the order amount is withdrawn from the customer payment card (the one that is linked to their app).
Now the funds get settled to your company bank account in the same settlement batch file and within the same timeframe as your regular card payments.
Functionalities
Functionality | Details |
---|---|
Payment type | Wallet |
Currencies | DKK, EUR |
Countries | DK, FI |
Recurring | ✅ |
Refunds | ✅ |
Partial refund | ✅ |
Update order | ✅ |
Cancel payment | ✅ |
Reservation & charge | ✅ |
Activation
To be able to use MobilePay as a payment method on your webshop, you need to have a card acquiring agreement with your chosen acquirer. You don't need any additional agreements.
You are responsible for activating this payment method in Netaxept Admin and ensuring that all information is entered correctly.
-
Log in to Netaxept Admin:
- test: https://test.epayment.nets.eu/admin
- production: https://epayment.nets.eu/admin
-

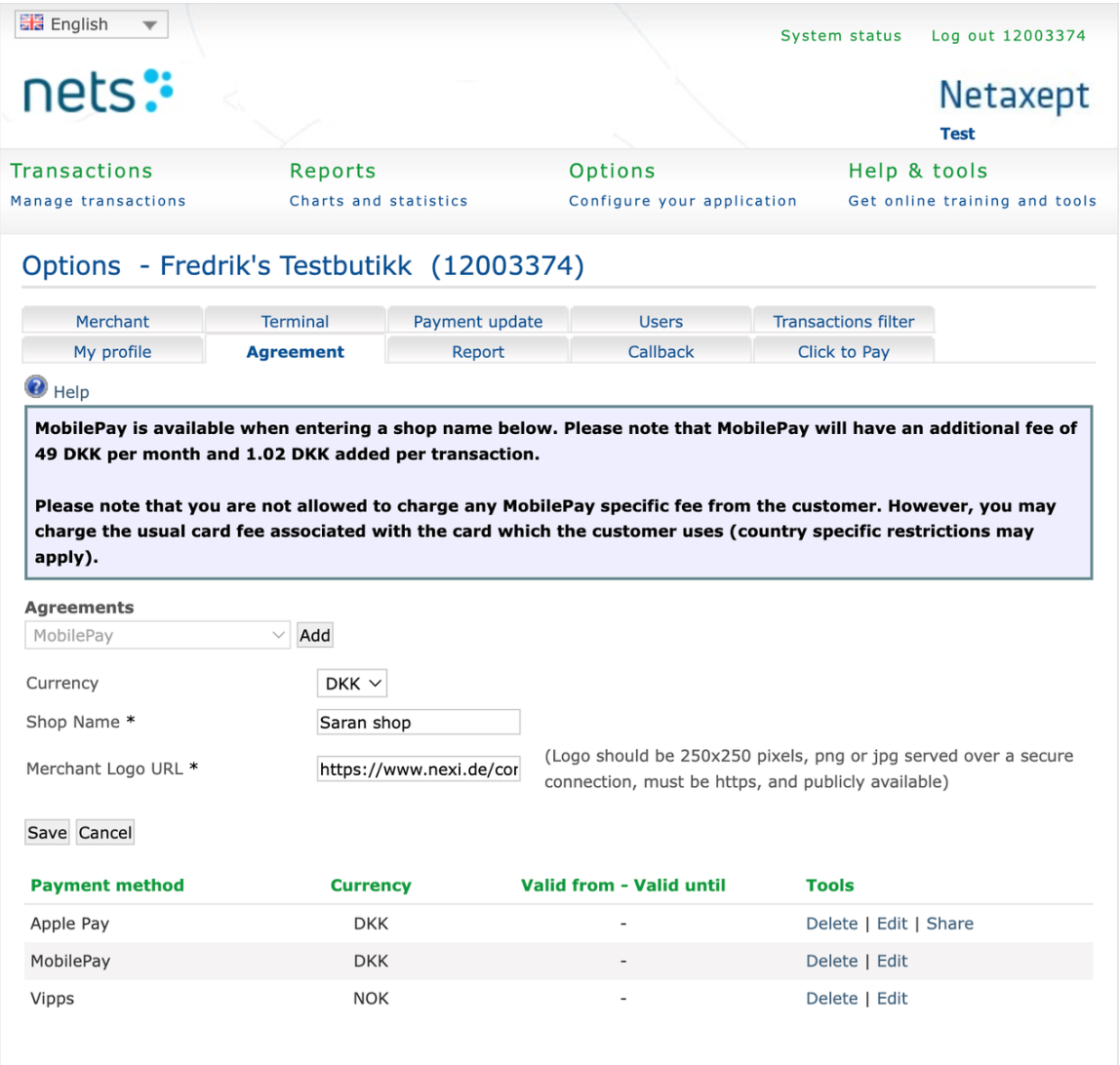

Find the "Agreement" tab under "Options".
-
Choose "MobilePay" from the drop down list and click the "Add" button.
-
Select the desired currency (EUR or DKK) and enter the name of your webshop which you would like MobilePay to display under the merchant logo and use for a cardholder statement.
-
Add merchant logo link. This is to display merchant logo on MobilePay app terminal. If not added, then by default MobilePay logo will be displayed. However, we recommend merchants to add their company logo for better buyer experience.
-
Save your changes by clicking the "Add" button.
User Journey
This section describes the customer journey for a consumer:

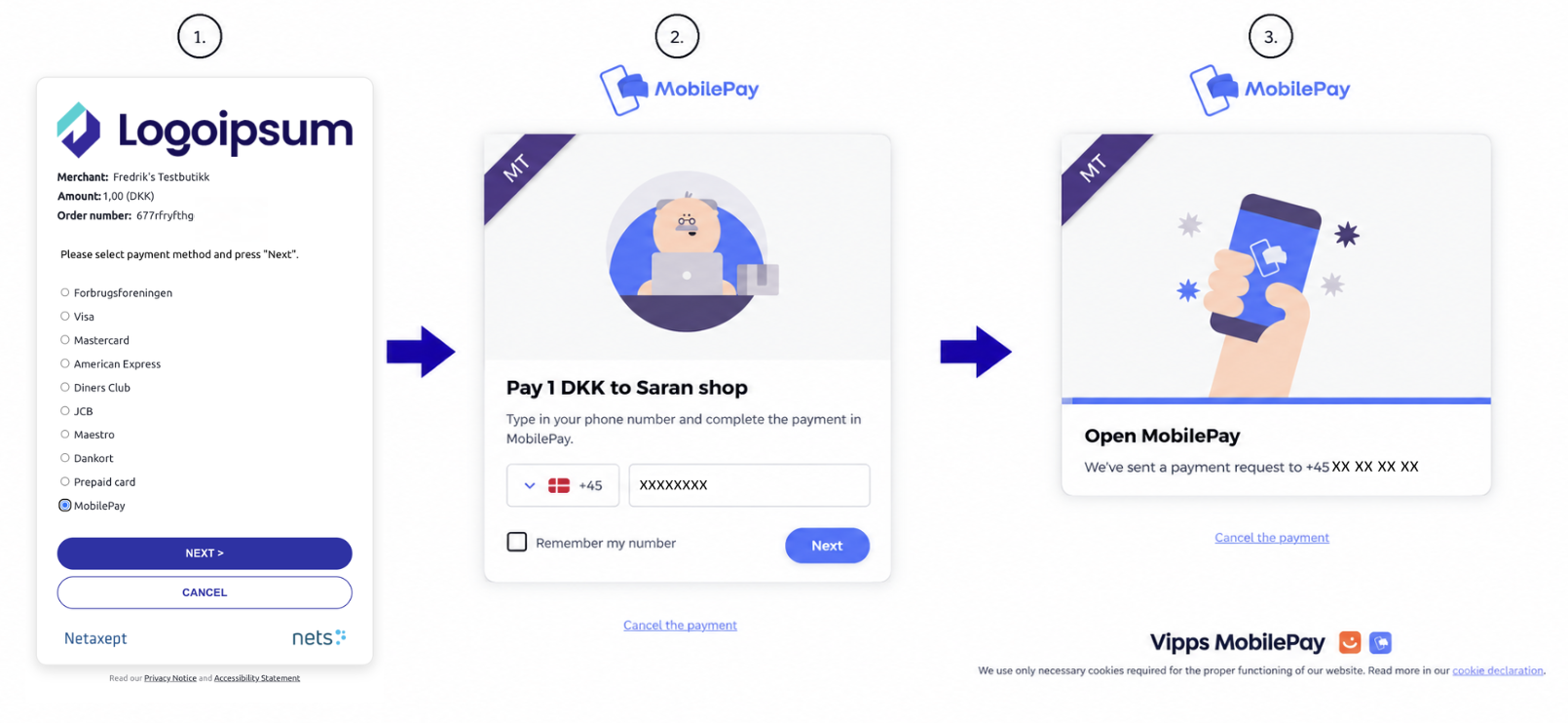

- When your customer chooses MobilePay as a payment method on a desktop they will be forwarded to the MobilePay landing page.
- On the MobilePay webpage customer is asked to enter their phone number (it may be pre-filled) connected to the MobilePay account.
- Once the "Continue" button is clicked, the customer is prompted with a push notification on their mobile device to open the MobilePay app. from MobilePay on the mobile phone. The customer has five minutes to approve the transaction.

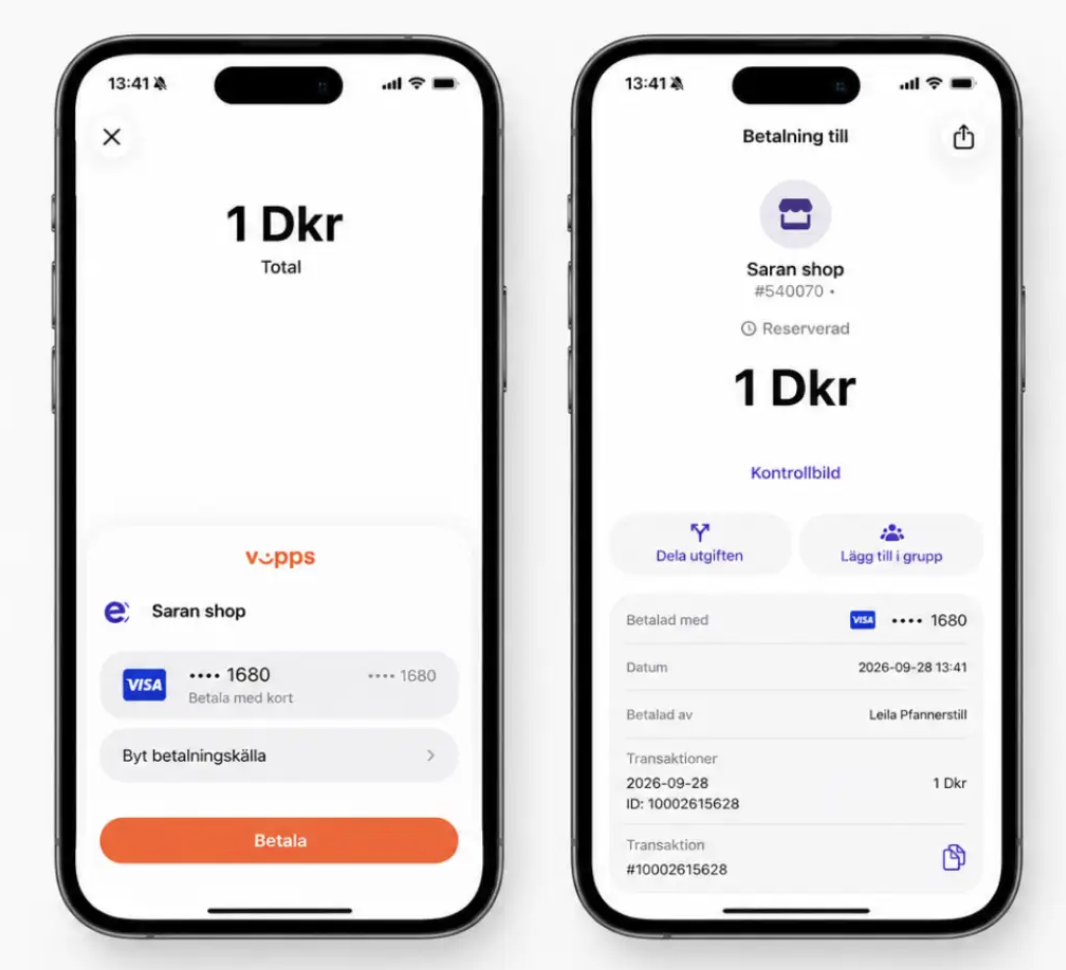

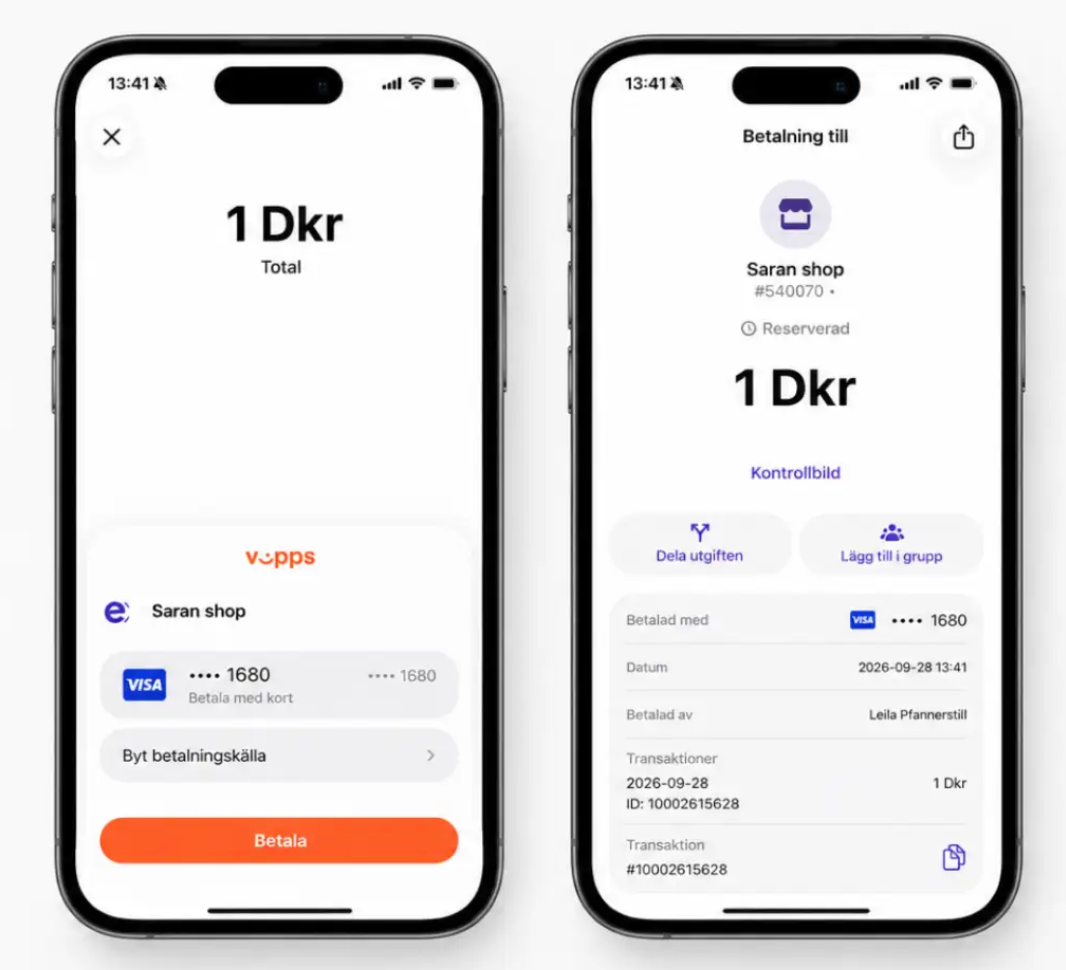

- Customer approves the payment in the app and receives a receipt in the app showing the approval of the payment.
- The customer will be redirected back to your site and sees the success screen.
When the transaction is initiated in mobile device browser, phone number is not required and instead of the normal flow as on desktop, an app switch to the MobilePay app is activated.
Payment Flow
The payment flow in general follows the sequence of steps as described in the payment flow outline section.
In fact, payments done via mobile wallets are considered and processed as regular card payments, and as such, the same rules and possibilities apply:
- The payment can be captured after the product or service has been delivered to the consumer or there is certainty regarding its delivery.
- The authorization is valid the same length as regular card authorizations, i.e. depending on issuer rules.
- The authorization is put on the underlying card.
- The same liability shift rules apply than with regular card payments.
Wallet based payment methods are not supported in the single page payment window.
The following technical requirements apply to MobilePay:
-
If you are sending "Payment method action list" parameter with the Register call, you need to the payment method name “MobilePay” into this parameter. Also for MobilePay, you need to generate a unique value in
Order number
field for each transaction. Re-use of order number within same merchant ID is not allowed. -
Pre-filled phone number: You can provide a phone number to be pre-filled in the phone number field on the MobilePay webpage by adding “customerPhoneNumber” in the Register call. The phone number should be given in international format +[country code][phone number].
-
AutoAuth: After the Terminal phase, Netaxept triggers an automatic authorization for the transaction, therefore you don’t need to run the Process(AUTH) call on MobilePay transactions. We recommend confirming through a Query API call that the authorization is successful before processing capture.
If you prefer to perform direct Sale transaction, then AutoSale=true parameter should be included in Register call. Refer Netaxept API for more details.
-
Process(CAPTURE): When you want to capture the payment, run capture to the payment either via Netaxept API by doing the Process(CAPTURE) call or manually via Netaxept Admin.
-
Process(ANNUL) and Process(CREDIT): Also, you can cancel the authorization if the purchase is cancelled before the payment is captured, or run either full or partial credit if the payment is already captured.
Callback functionality and Query call
In order to verify that the transaction has the correct status and is authorized successfully, or if you are unsure which payment method the customer used for the payment, we recommend you to implement [Callback functionality] and the Query call as part of the payment process.
Through the Callback, you will receive a transactionId
whenever the transaction has a new status. Based on this, you can do the Query call to get the new status and detailed information about the transaction.
Fees
If you have defined fees for different payment methods, please note that charging MobilePay specific fees from consumers are not allowed. However, you may charge the usual card fee associated with the card which the consumer uses (taking into account the other fee and country specific rules and restrictions). In this case, the fee needs to be displayed clearly in your webshop page before the consumer approves the order and continues to the payment phase.
More information about Callback can be found here.
Payment Flow (App Switching)
Using this flow users can be switched directly to MobilePay app without using browser, thereby offering a smoother user experience.
App switching does not require customer to enter phone number but it does require that the MobilePay application is installed on your customer device. It also enables app switch both to the MobilePay application and back to the merchant application or website as described below:
-
If the transaction is performed in app, the Register call should contain the following parameters for the app switch (from your app to MobilePay app).
PaymentMethodActionlist
=MobilePay
ServiceType
=M
Currency
=DKK
orEUR
redirectURL
as your merchant application URL-scheme ("merchant://") or your full https address.
The transaction flow is as follows:
- Initiate the transaction in your app.
- App switch to MobilePay app.
- Customer authorizes the transaction and MobilePay switches back to your app.
Testing

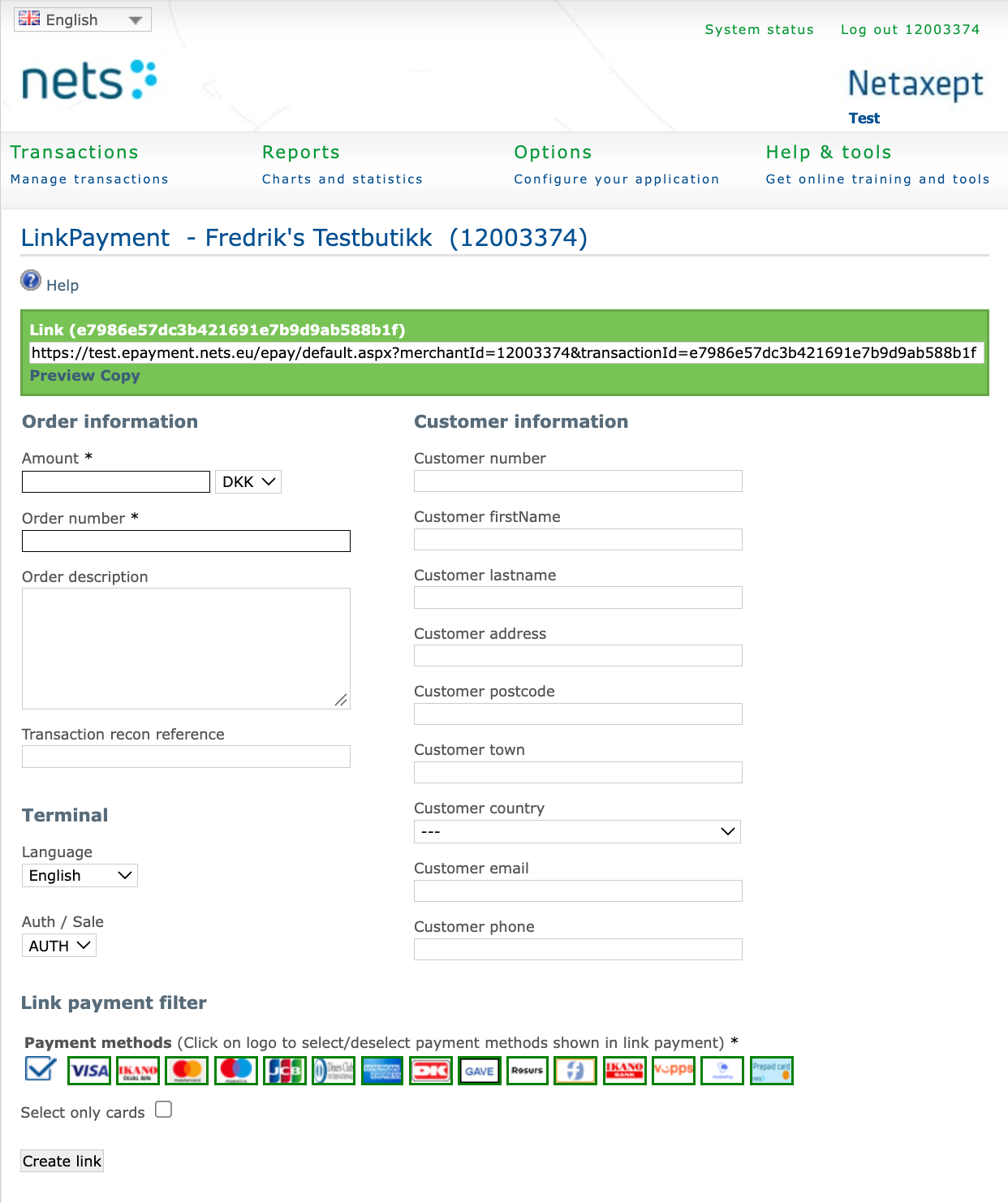

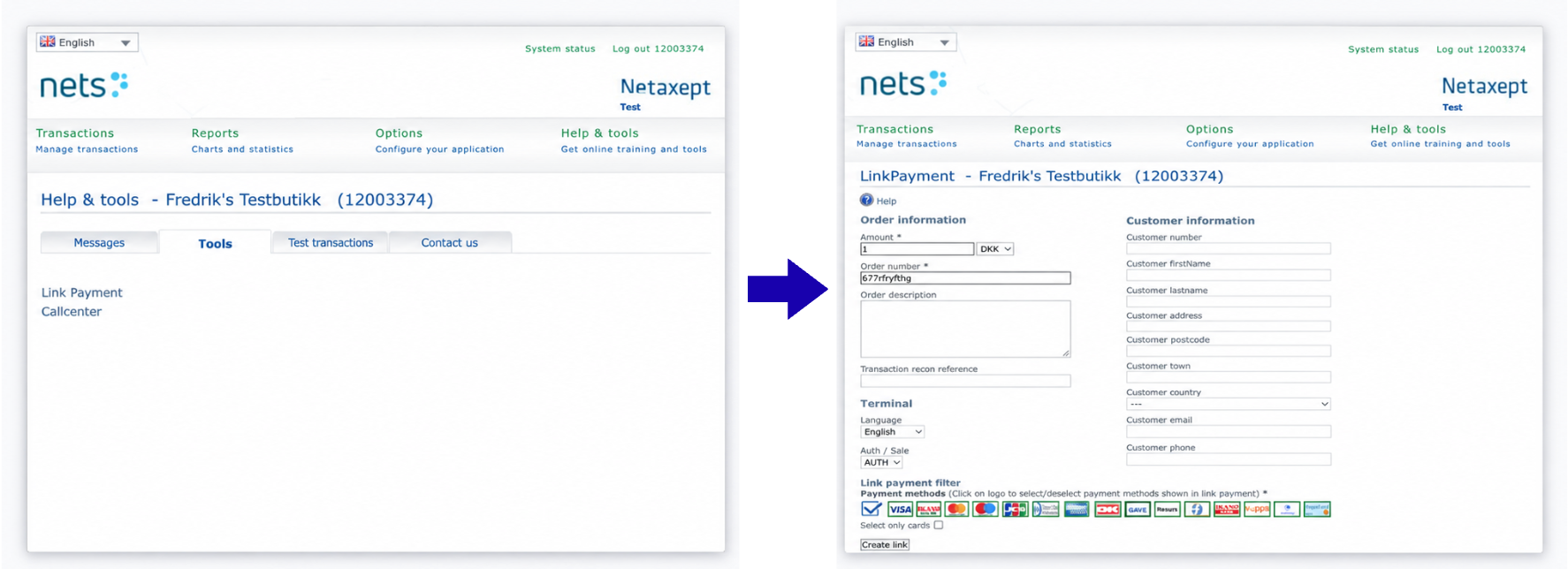

MobilePay Online can be tested in a test environment. To complete a payment flow within the test environment, you can download a test version of the MobilePay app from here.
Test Credentials for MobilePay
- Test User 1: +45 93283974
- Test User 2: +45 22378951
- Enter “1234” as the PIN
- Enter “123456” as the activation code and press OK
The same test credentials apply for both DKK and EUR currencies.
Please note that when using shared test users in the MobilePay test app, the details of test transactions are visible to others in the activity list. Therefore, when making test payments, please avoid including any sensitive data.
Settlements and Identifying Transactions
Settlement batch and transaction reference number
Payments done via mobile wallet will be processed as regular card payments in Netaxept, and therefore they will be included in the same settlement batch files as the other card payments. The timeframe before the money is settled to your company's bank account will be the same as for regular card payments.
Specifying a unique reference number for each transaction works in the same way as with regular card payments: The TransactionReconRef
parameter must be sent with the Register call to Netaxept.
As with the regular card payments, the actual support for end-to-end transaction reference number is bound by the limitation of the acquirer that you have an agreement with.
Identification of transactions
Mobile wallet transactions can be identified both in Netaxept Admin and via API by using the Query call.

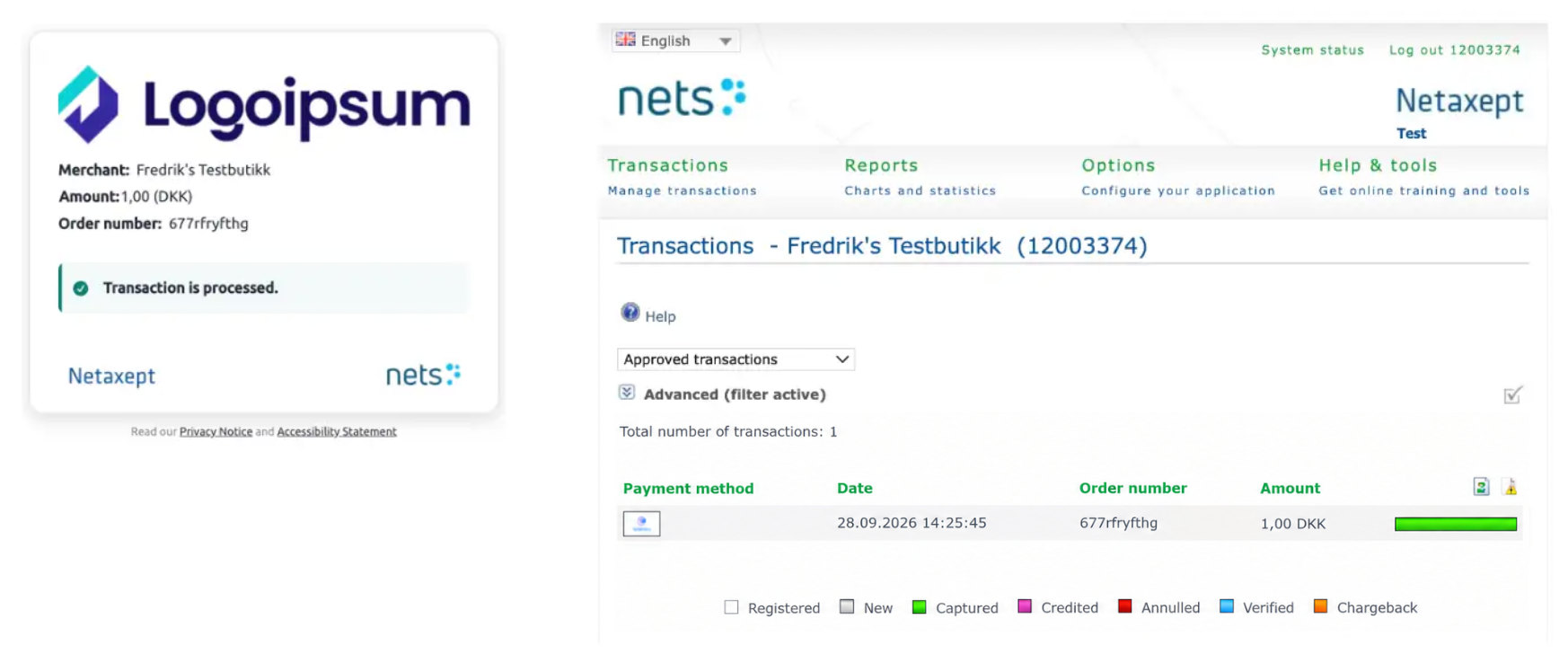

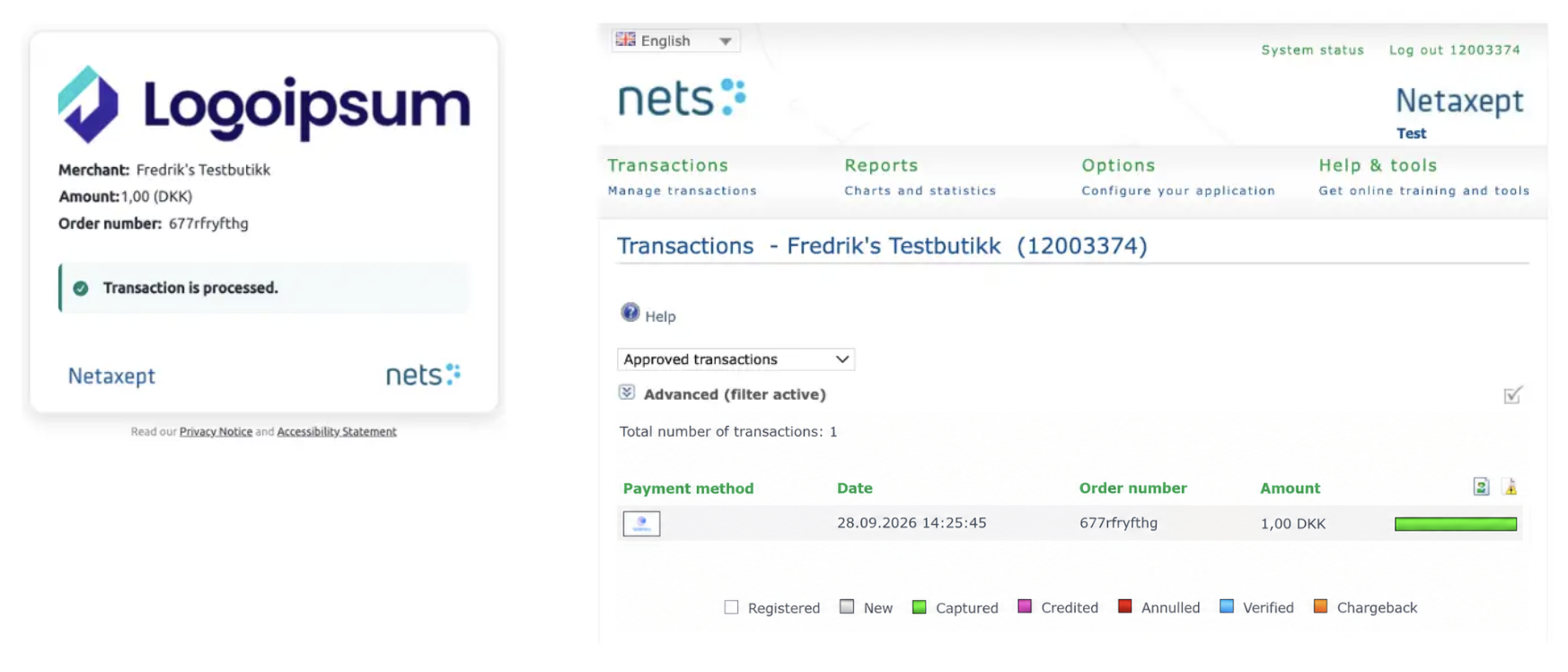

Netaxept Admin
- find the mobile wallet logo in "Transaction list" next to the transaction
- the corresponding "Details" page will show both, the mobile wallet logo and the logo of the underlying card
- you can search payments done with mobile wallet by selecting the corresponding payment method in the "Advanced transaction search" section
Query call
The Query call's Wallet
element contains the information about the mobile wallet used for the payment. The underlying card is shown in the CardInformation.PaymentMethod
and CardInformation.Issuer
parameters.
